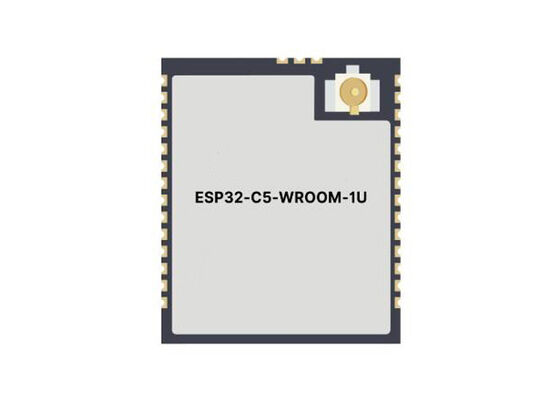

ESP32-C5-WROOM-1U-N16R8 Wireless Communication Module Wi-Fi 6 + BT 5 + Zigbee/Thread Wireless Module

ESP32-C5-WROOM-1U-N16R8 Wireless Communication Module Wi-Fi 6 + BT 5 + Zigbee/Thread Wireless Module​

Product Description Of ESP32-C5-WROOM-1U-N16R8

ESP32-C5-WROOM-1U-N16R8 is a high-end multi-protocol wireless module based on the ESP32-C5 chip, serving as the high-memory variant of the ESP32-C5-WROOM-1U-N8R8. The key difference lies in its 16MB Quad SPI Flash (double that of the N8R8), paired with 8MB PSRAM, making it specifically designed for high-end IoT applications, smart home gateways and industrial control systems requiring large firmware, complex user interfaces, local AI inference and extensive data caching.

Specification Of ESP32-C5-WROOM-1U-N16R8

1. Processor and Memory
CPU: 32-bit RISC-V single-core, up to 240 MHz
ROM: 320 KB
SRAM: 384 KB (HP) + 16 KB (LP)
Flash: 16 MB (Quad SPI)
PSRAM: 8 MB (Quad SPI)
Security: Secure boot, Flash/PSRAM encryption, AES/RSA/ECC hardware accelerators, TEE (Trusted Execution Environment)
2. Wireless Connectivity
Wi-Fi 6 (802.11ax)
Bands: 2.4 GHz & 5 GHz dual-band (1T1R)
Speed: Up to 150 Mbps
Features: OFDMA, MU-MIMO, TWT power saving, Beamforming, WPA3 security
Bluetooth 5 (LE)
Data rate: 125 kbps to 2 Mbps
Features: Long Range, AoA/AoD positioning, multi-connection, low power consumption
802.15.4
Protocols: Zigbee 3.0, Thread 1.4 (Matter compatible)
3. Interfaces and Peripherals
GPIO: 22 programmable GPIO pins
UART: 3 channels (including LP UART)
SPI: 2 channels
I2C: 2 channels
I2S: 1 channel
PWM: Multi-channel
ADC: 12-bit multi-channel
SDIO: Slave interface
Touch: Supported
4. Electrical and Physical Specifications
Power Supply: 3.0 V to 3.6 V
Power Consumption: Deep sleep < 10 μA, Modem sleep, Light sleep
Dimensions: 18.0 × 21.2 × 3.3 mm
Package: SMD surface mount, 1.27 mm pin pitch
Antenna: IPEX (U.FL) external interface

Features Of ESP32-C5-WROOM-1U-N16R8

Module that supports 2.4 and 5 GHz dual-band Wi-Fi 6 (802.11ax), Bluetooth®5 (LE),Zigbee, and Thread (802.15.4)
Built around ESP32-C5 series of SoCs
32-bit RISC-V single-core microprocessor
Flash up to 32 MBUp to 22 GPIOs
External antenna via aconnector or module pins
Operating voltage/Power supply: 3.0~3.6 V
Operating ambient temperature: –40 ~ 85 °C
