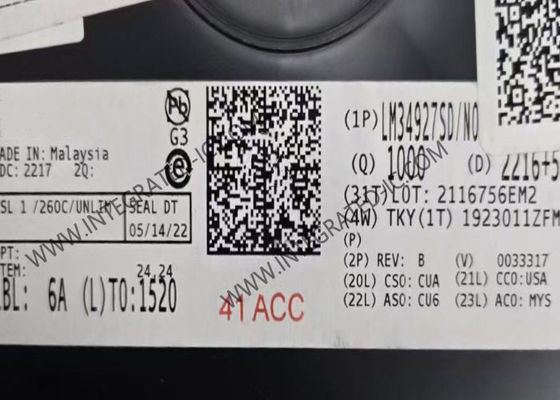

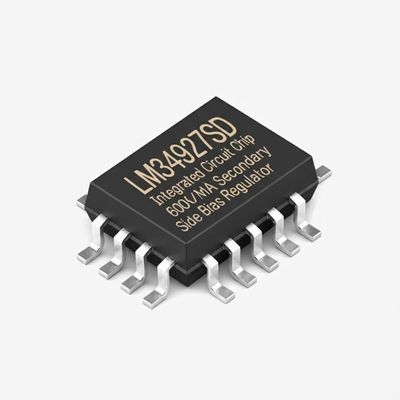

LM34927SD Integrated Circuit Chip Isolated Bias Regulator 600mA Secondary Side Bias Regulator
Product Description
The LM34927SD regulator provides all necessary functions for implementing a low-cost, efficient, isolated bias regulator. This high-voltage regulator integrates two 100-V N-channel MOSFET switches—a high-side buck switch and a low-side synchronous switch.
The Constant On-Time (COT) control scheme used in the LM34927SD eliminates the need for loop compensation while delivering excellent transient response. The regulator operates with an input voltage-dependent on-time, maintaining a relatively constant operating frequency.
Specifications
| Function |
Step-Down |
| Output Configuration |
Positive, Isolation Capable |
| Topology |
Buck |
| Output Type |
Adjustable |
| Number of Outputs |
1 |
| Voltage - Input (Min) |
7.5V |
| Voltage - Input (Max) |
100V |
| Voltage - Output (Min/Fixed) |
1.225V |
| Voltage - Output (Max) |
100V |
| Current - Output |
600mA |
| Frequency - Switching |
Adj to 1MHz |
| Synchronous Rectifier |
Yes |
| Operating Temperature |
-40°C ~ 125°C (TJ) |
| Mounting Type |
Surface Mount |
| Package / Case |
8-WDFN Exposed Pad |
| Supplier Device Package |
8-WSON (4x4) |
Key Features
- Wide 7.5-V to 100-V Input Range
- Integrated 600-mA High-Side and Low-Side Switches
- No Schottky Required
- Constant On-Time Control
- No Loop Compensation Required
- Ultra-Fast Transient Response
- Nearly Constant Operating Frequency
- Intelligent Peak Current Limit
- Adjustable Output Voltage From 1.225 V
- Precision 2% Feedback Reference
- Frequency Adjustable to 1 MHz
- Adjustable Undervoltage Lockout (UVLO)
- Remote Shutdown
- Thermal Shutdown
Applications
- Isolated Telecom Bias Supply
- Isolated Automotive and Industrial Electronics
